Nano EVO2.0 Pedals

Nano EVO2.0 Pedals

Regular price £74.99 GBP
Regular price Sale price £74.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour
Size

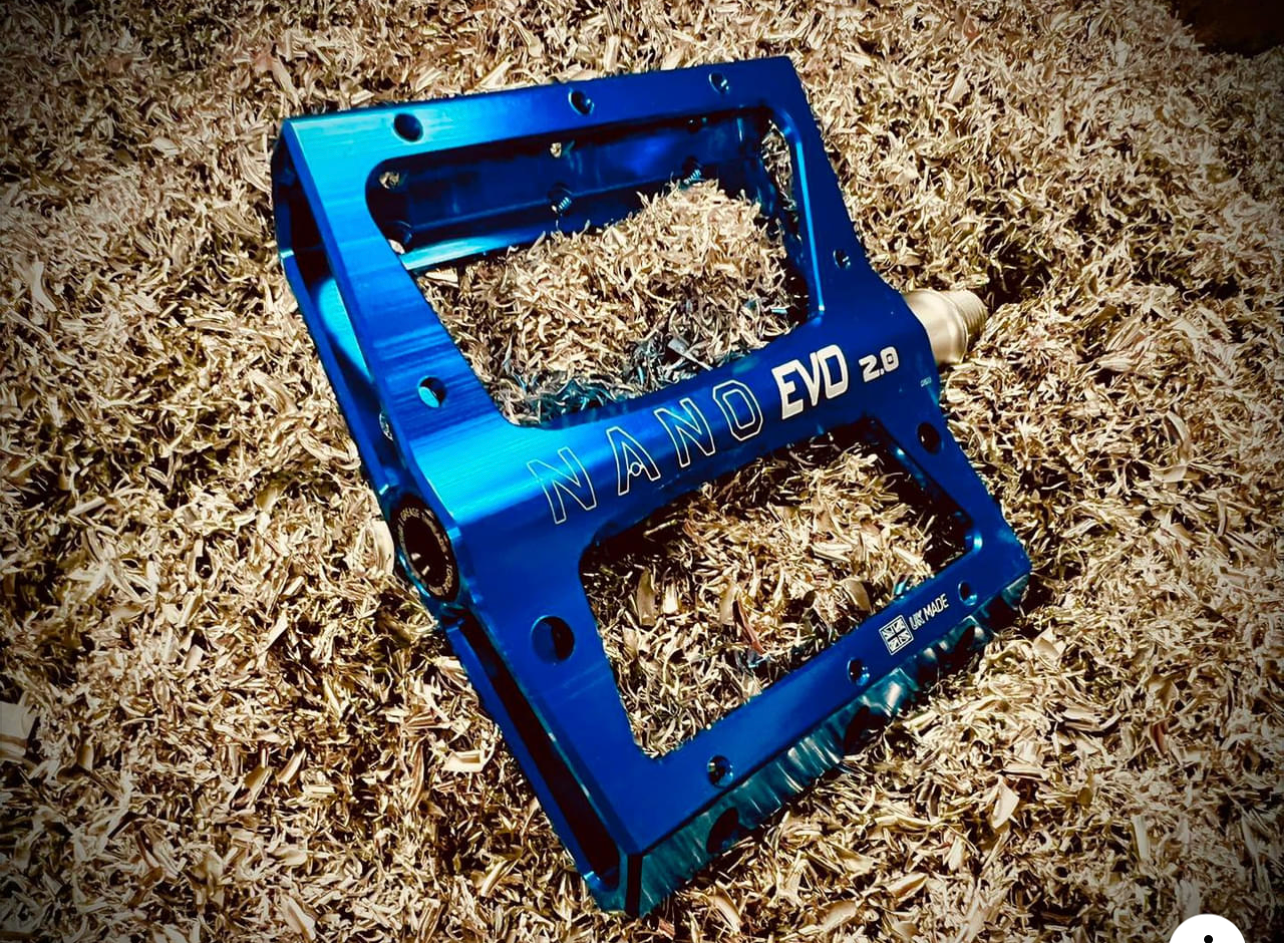

The next level of performance is here - The Nano-X EVO2.0 is precision machined in the UK to exacting tolerances, in our Lincoln CNC machining facility. We have taken years of experience and customer feedback, tweaked and refined to create then latest incarnation of the Nano line.

Using the latest Nano axle design technology, the new Nano X EVO pedals:

  • Retain the perfect platform size, with a 101mm x 110mm, 17mm thick body
  • 440g with standard steel axles, 370g with a titanium axle upgrade (+£49.99) [pair] 350g with Ti Pins and Ti axle (Available separately)
  • Titanium Pin Option - Save an extra 17g for the ultimate trail pedal - Note 8mm pins only (Available separately)
  • Increase durability, with two sealed bearings and custom German manufactured IGUS bushing in each axle
  • Custom double lip seal internally for ultimate waterprofing
  • CNC machined from custom extruded 6082 aluminium
  • Available in a range of colours, with laser etched logos

An evolution of the award winning Nano EVO pedals we have tweaked the platform shape and retained the perfect 110mm x 101mm size. Fitted with a custom axle system with self adjusting and lubricating IGUS bushings, and internal custom double lip sealing for industry leading durability.The new axle system is designed with extremely tight tolerances, so will feel tight in the hand but perfect in use.

With a concave body and thin 17mm profile, we have also strategically beefed up the extrusion for yet more strength. Replaceable custom steel grip pins and forged steel axles for ultimate strength, an ultralight forged titanium axle upgrade is an available option.  Join the tens of thousands of Nano riders already ripping the trails with these superb UK made pedals.

Manufactured with pride in the UK:

We manufacture our Nano X EVO 2.0 pedals using the best technology available. We've installed a state of the art FANUC robot arm to load and unload the Nano X billets into our 24,000RPM FANUC Robodrill, meaning we can make Nano X's 24 hours a day, 7 days a week (want to see more? Check out our Youtube!)

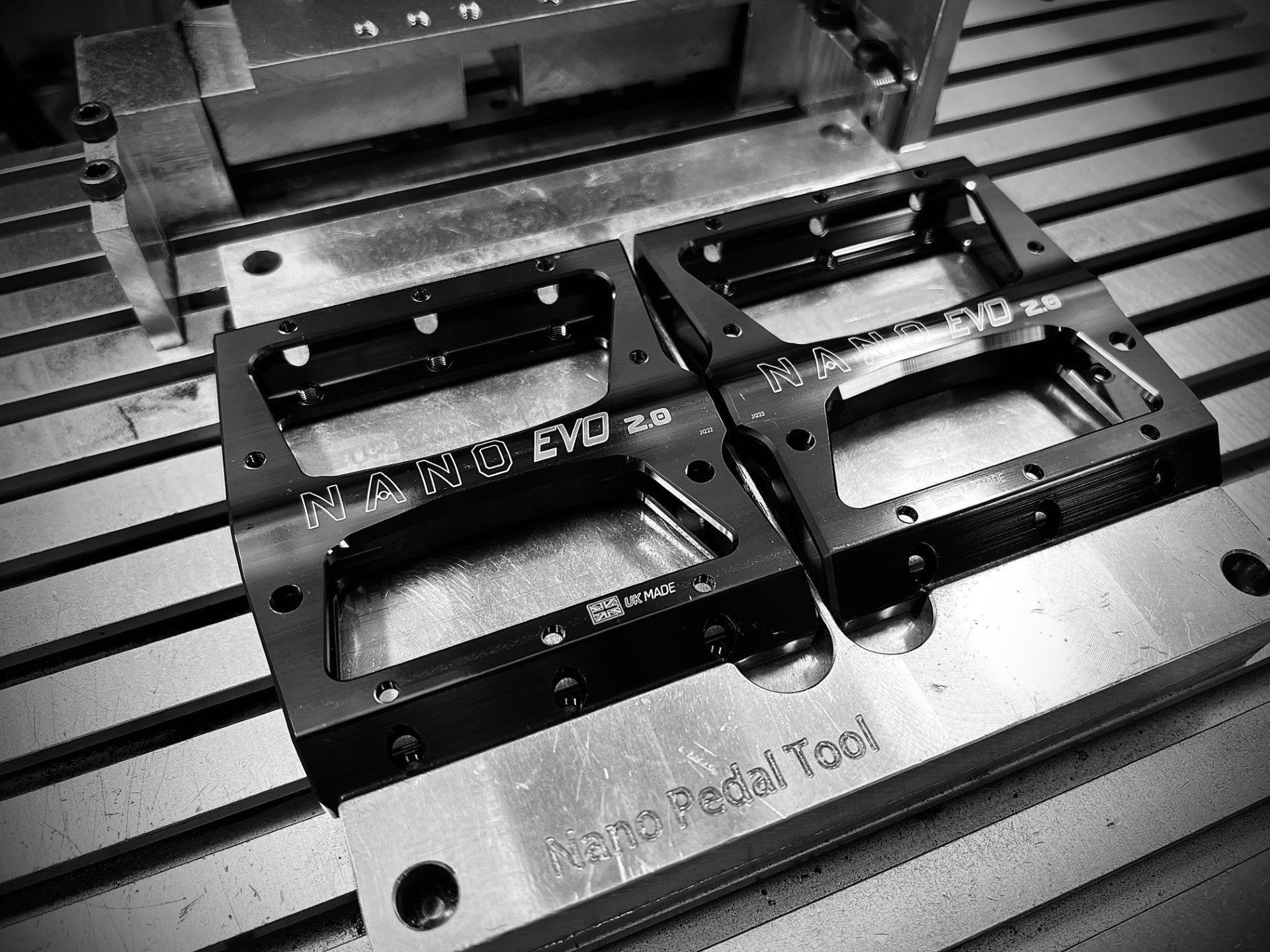

Once CNC machined, we send our pedals off to a specialist in Manchester, UK to be colour anodised, before they're returned to us to be laser etched using our Trumpf high-precision fibre laser. Then they're assembled by our skilled technicians in our purpose built assembly room, packaged up and delivered to you.

Its nice when something special doesn't cost the earth!



  • Weight: 440g (Steel Axles)
  • Weight: 370g (Titanium Axles)
  • Weight: 350g (Titanium Axles and Pins)
  • Platform size 101*110mm
  • Thickness 17mm

The pedal is designed to run without obvious grease, as the bearings are internally lubricated and the bushing is self-lubricating.  A light wipe on the axle surface is all thats needed, adding extra grease will not alter performance but will shorten service intervals.

The extra tight double lip seal is designed to be high contact type and will feel stiff in the hands straight out of the box this is normal. Once fitted and bedded in there will be minimal friction, and will make the internals of the pedal safe from any riding conditions.

The IGUS self adjusting bushing will help eliminate play from worn bushings for much longer service intervals. Again this will feel in the hand to have sticktion but once in use the actual friction will be minimal.

These three features will increase the life of your pedal and make it practically fit and forget. If your current pedals spin like crazy with a light flick this just exposes the poor quality loose clearance bearings and complete lack of actual seals, it does not mean they are well made! We prefer to make high quality products which will last.
